Is your Nintendo 3DS XL battery not holding a charge? Does your console run out of power quickly, shut down unexpectedly, or barely last long enough for a gaming session?
If so, it may be time for a Nintendo 3DS XL battery replacement.
The SPR-003 replacement battery is designed for Nintendo 3DS XL and New Nintendo 3DS XL consoles. Replacing an old or worn-out battery is a simple way to extend the life of your handheld and get back to enjoying your games.
What is an SPR-003 battery?
The SPR-003 is the battery model used in the larger XL versions of the Nintendo 3DS family.
The replacement battery has a 3.7V voltage and 2000mAh capacity, making it a suitable replacement for an original battery that has become worn or degraded over time.
If you are searching for a 3DS XL replacement battery, checking the battery model is important before purchasing. The standard Nintendo 3DS and standard New Nintendo 3DS use different batteries.
Does your Nintendo 3DS XL need a new battery?
Lithium-ion batteries naturally lose capacity as they age. Since many Nintendo 3DS XL consoles are now several years old, the original battery may no longer provide the same battery life it did when the console was new.
Some common signs that your Nintendo 3DS XL battery needs replacing include:
- Your 3DS XL battery doesn't hold a charge for very long.
- The battery percentage drops quickly.
- The console turns off unexpectedly.
- The battery drains unusually quickly while playing games.
- The console only works reliably while connected to a charger.
- The battery has become swollen or physically damaged.
If your 3DS XL has suddenly developed charging problems, however, the battery may not always be the cause. A faulty charger, charging port or other internal hardware could also cause charging issues.
Nintendo 3DS XL battery life getting shorter?
One of the most noticeable signs of an ageing battery is reduced battery life.
When a rechargeable battery is new, it can hold a certain amount of electrical charge. Over many years and hundreds of charge cycles, its capacity gradually decreases.
This means an older Nintendo 3DS XL battery may show that it is fully charged but still run out of power much faster than it originally did.
Replacing the battery can restore much of the console's original portability without having to replace the entire Nintendo 3DS XL.
SPR-003 battery compatibility
The SPR-003 replacement battery is designed for the following consoles:
- Nintendo 3DS XL
- Nintendo 3DS LL
- New Nintendo 3DS XL
- New Nintendo 3DS LL
Important compatibility information
The SPR-003 is for the XL models.
It is not the correct battery for:
- Original Nintendo 3DS
- New Nintendo 3DS
These smaller models use different battery types.
If you're unsure which Nintendo 3DS model you have, check the model information on the console before ordering a replacement battery.

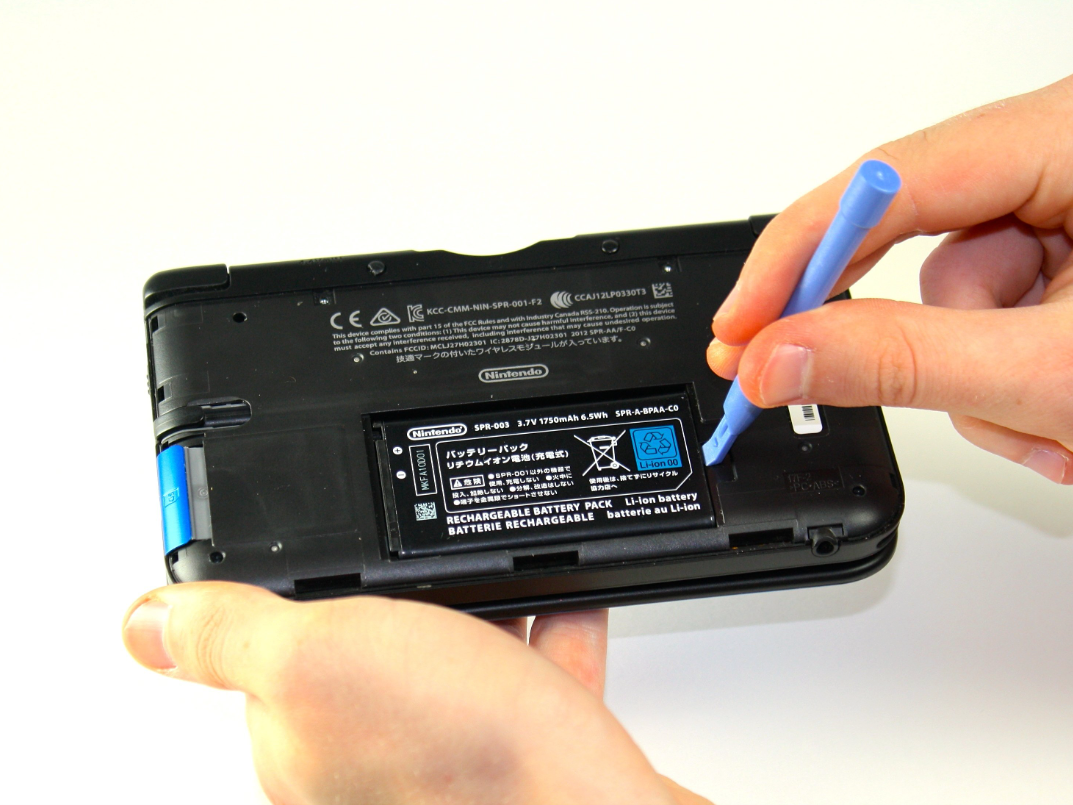

How to replace a Nintendo 3DS XL battery
One of the benefits of the Nintendo 3DS XL design is that the battery can be replaced without completely disassembling the console.
Before replacing the battery, make sure the console is switched off and disconnected from its charger.
The battery is located underneath the rear battery cover. After removing the appropriate screws and rear cover, the old battery can be removed and the replacement SPR-003 battery installed.
Take care when working around the battery and avoid using sharp or metal objects that could damage it.
Once the replacement battery is installed, reinstall the battery cover and screws before switching the console back on.
Why replace your 3DS XL battery?
Replacing the battery can be a much cheaper option than replacing an entire Nintendo 3DS XL console.
A new battery can help if your console:
- Doesn't stay charged for long.
- Loses power during gaming.
- Has an ageing original battery.
- Is being used for travel or portable gaming.
- Is being restored as part of a retro gaming collection.
For collectors and gamers who want to keep their original hardware running, a 3DS XL battery replacement is a simple and worthwhile repair.
SPR-003 Battery Specifications
- Battery model: SPR-003
- Voltage: 3.7V
- Capacity: 2000mAh
- Energy: 6.5Wh
- Battery type: Lithium-ion polymer (Li-Po)
- Replacement type: Aftermarket
- Compatible with Nintendo 3DS XL / 3DS LL
- Compatible with New Nintendo 3DS XL / New Nintendo 3DS LL
Frequently Asked Questions
What battery does the Nintendo 3DS XL use?
The Nintendo 3DS XL uses the SPR-003 battery. The same battery model is also used in the Nintendo 3DS LL.
Does the SPR-003 fit the New Nintendo 3DS XL?
Yes. The SPR-003 battery is compatible with the New Nintendo 3DS XL and New Nintendo 3DS LL.
Does the SPR-003 fit the original Nintendo 3DS?
No. The original Nintendo 3DS uses a different battery and does not use the SPR-003.
Does the SPR-003 fit the New Nintendo 3DS?
No. The standard-size New Nintendo 3DS uses a different battery from the New Nintendo 3DS XL.
How long does a 3DS XL battery last?
Battery life depends on factors such as game usage, screen brightness, wireless features and the age and condition of the battery. An older battery will generally provide significantly less runtime than a new replacement battery.
Can I replace the Nintendo 3DS XL battery myself?
Yes. The battery is user-replaceable and can be accessed by removing the rear battery cover. Always take care when handling rechargeable lithium-ion batteries.
Keep Your Nintendo 3DS XL Gaming
The Nintendo 3DS and Nintendo 3DS XL remain popular handheld consoles, and an ageing battery doesn't mean your console has reached the end of its life.
If your Nintendo 3DS XL battery isn't holding charge, replacing it with a compatible SPR-003 replacement battery can be an easy way to get your console back to reliable portable gaming.
