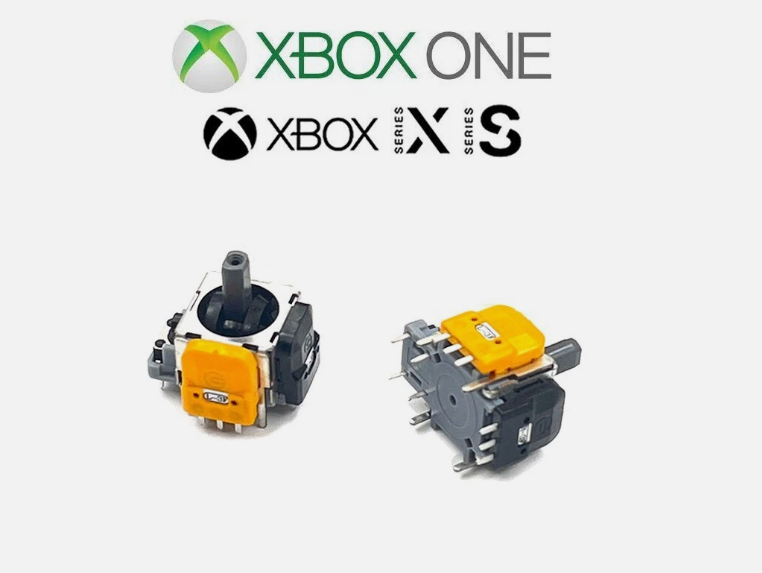

2 x Xbox One + Xbox Series S | X Hall Effect 3D Joystick

2x Hall Effect Joysticks

Hall Effect joysticks use magnets to detect movement instead of traditional wheel-based sensors found in standard controllers. This design offers improved accuracy and significantly longer lifespan, as there is no physical contact wear between components.

These modules require soldering for installation and must be calibrated after fitting, as each controller may have slight calibration differences.

Included

2 × Hall Effect joystick modules

Specifications

• Sensor type: Hall Effect (magnetic detection)
• Technology: Contactless magnetic movement sensing
• Installation: Soldering required
• Calibration: Required after installation
• Compatibility: Xbox One model 1537 controllers, Xbox One model 1697 controllers, Xbox One model 1708 controllers, Xbox Series S|X 1914 controllers

Notes

• Not compatible with any controllers outside the listed models
• Do not purchase if your controller model is not explicitly listed
• Requires soldering skills for installation
• Calibration is required and may vary between controllers
