Funny Playing IPS Laminated 3.0 LCD M2 for Game Boy Advance

• The panel exhibits a 99% coverage of the sRGB color gamut and achieves a maximum luminance of 500 cd/m².
• Add OSD menu，With power-off memory.

• At the lowest brightness, the kit power consumption is 0.27w
• More display effects and Mixed frame switch.

Need?

• Game Boy Advance IPS Shell?

Features

• Crisp, vibrant display
• Fast refresh rate with no blur
• Multi-level touch brightness control
• 15 Brightness levels,  4 color options & 3 pixel options
• Laminated screen lens eliminates the need for lens installation
• A seamless fit with the Funny Playing Shell for Game Boy Advance Laminated Screens

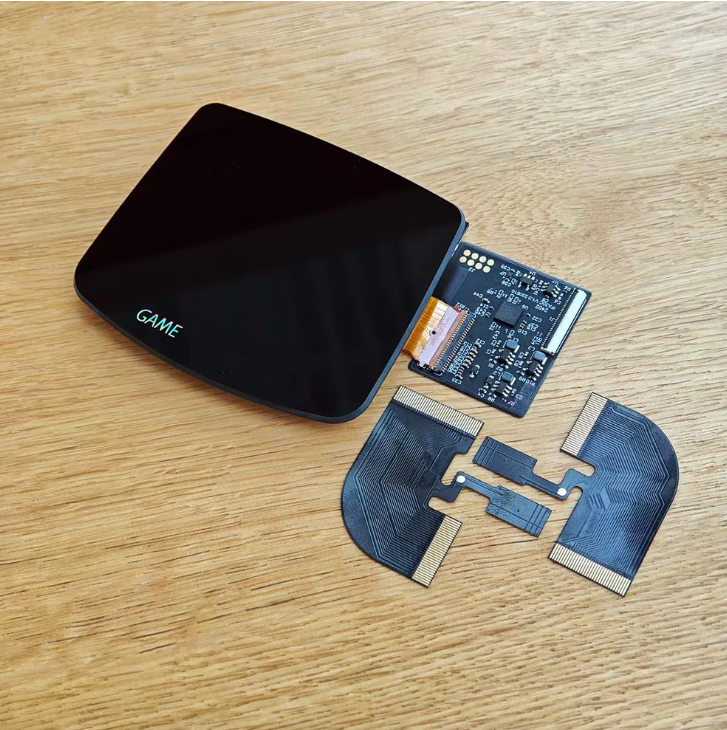

Included

3.0 Laminated IPS M2 LCD                     × 1

Main ribbon                                           × 1

Extension ribbon                                    × 2

Welding line                                           × 3

The functionality of the LCD is as follows:

• A short tap of the touch sensor will cycle up through 15 brightness levels
• A long hold of the touch sensor will cycle down through 15 brightness levels
• A long hold of Select + L + R will enter function mode; holding start + select again will exit function mode
• While in function mode:
• Tapping Select will cycle through the different functions
• With "BRT" selected, L & R will cycle through 15 brightness levels
• With "CLR" selected, L & R will cycle through 4 color options (Standard, Saturated, Grayscale, “Classic Green”)
• With "DSP" selected, L & R will cycle through 3 pixel options (standard, Anti-aliasing, Pixel Grid
• With “FRM” selected, L & R will toggle frame blending

Notes

• Some soldering is required, see the installation guide linked in the documentation section.

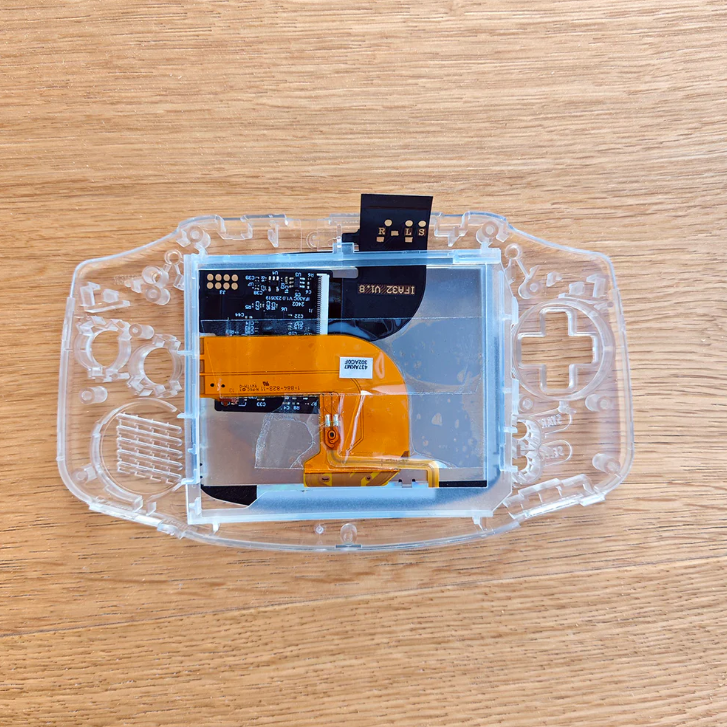

• This kit requires Funny Playing's Laminated GBA shells, as they are designed to accommodate this display; the kit cannot be installed on other shells.

Warning

• We strongly recommend testing the display before installing it in your Game Boy Advance. Please TEST to confirm the kit is working before the adhesive is secured, the display protection sheet removed, or any non-critical soldering to the ribbon or driver PCB. We are unable to accept returns or replacements on kits that have been installed in a console. Individual replacement parts may be available in the "Included" section above.

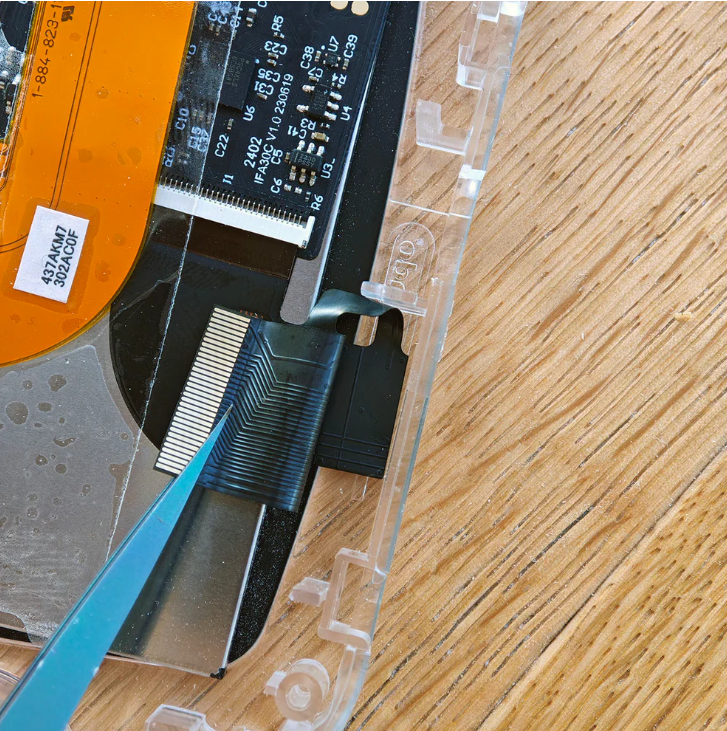

• The ribbon is very fragile, be sure to handle it carefully to avoid damage.
• Too much pressure can permanently damage the display, do not force the shell closed around the LCD. Ensure the shell is properly trimmed for the display before attempting to install it.
