ITA TFT Backlight Kit For Game Boy Advance - FUNNYPLAYING

ITA TFT Backlight Kit For Game Boy Advance - FUNNYPLAYING

$109.90
$109.90 $109.90
Sale Sold out
Tax included. Shipping calculated at checkout.
This LCD kit from Funnyplaying uses the lower screen of a Nintendo DSI for an upgraded display to your Game Boy Advance Console. It transfers the 240*160 display, the display size is the same as the original panel.

Need?


FEATURES:

  • At the lowest brightness, the kit power consumption is 0.15w. Less power consumption than other IPS kits.
  • It has the same display effect as AGS-101, without ghosting, better colors and brighter backlight.
  • Ideal if you want a brighter display, but want to keep the original pixel size.
  • Natural pixel grid scan lines
  • It has a memory brightness function and can adjust the partial display window.
  • Adjustable brightness
  • Suitable with OEM/Standard sized screen lenses

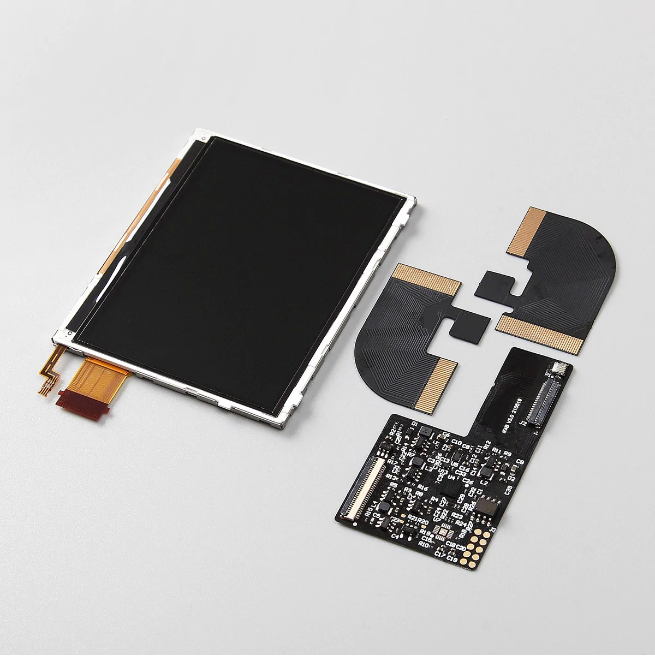

INCLUDED:

  • 1x TFT LCD (DSi Lower) with adhered PCB.
  • 1x 32 pin cable
  • 1x 40 pin cable
  • 3x Pre tinned hook up wires
  • 1x 3M Adhesive

PAIRS WELL WITH:

NOTES:

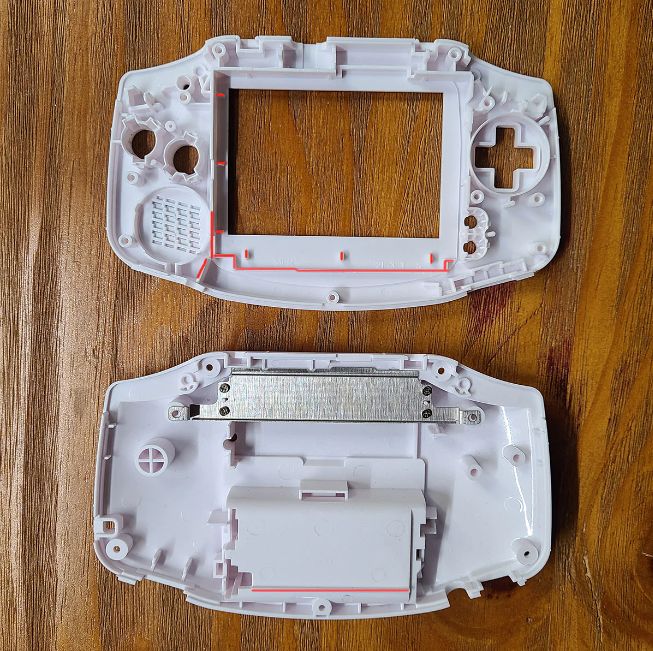

  • Shell modification requires cutting the inside of shell but not the viewing window.

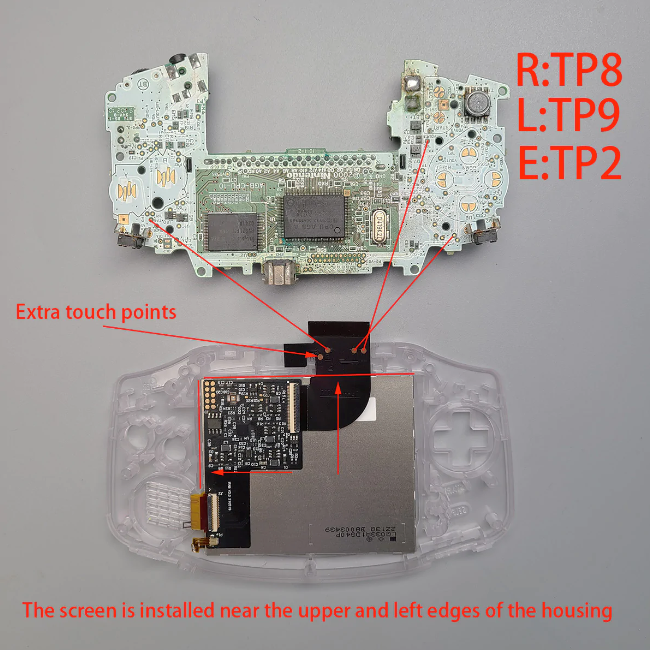

  • If you adjust the display window, you need to weld the select L R key.
  • Good viewing angle, but not as prominent as IPS.
  • The original lens can be used, the lens is not included in the kit.
  • The IPS lens window is too large and not perfect. It is not recommended to use it together.
  • If you experience screen flicker after installing, adjust the screen potentiometer on the back of the console.
  • 40 pin motherboards will need the C54 capacitor removed.

    DOCUMENTATION:

        WARNINGS:

        • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing it to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.

        • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
